Display the data as a win/loss chart inside a cell. This is useful for visualizing and presenting binary data like win/loss result.
Create Win/Loss Sparkline
- Select an empty cell to insert a sparkline.
- Click Data-Sparklines-Win/Loss.
- Specify the range of data on the Insert Sparkline dialog box.
- Click OK.
Note

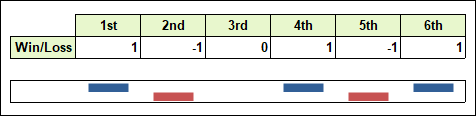

Win/Loss Sparkline
Positive values mean a win and negative values mean a loss. Based on the horizontal axis, the upward marker for a positive value (win) and downward marker for a negative value (loss) and the empty for a zero value are used to visualize binary results.
The Win/Loss sparkline shows the same length of markers regardless of the values. For example, even though a team won the twelve points (12) at the first game and lost the seven points (-7) at the second game, the markers in the same length appear in a cell: upward marker for the twelve-point win and downward marker for the seven-point loss.
